Sign-In Authentication Using Phone Number

We can use Firebase authentication to the sign-in user by sending a text message to the user's phone. The user will sign-in using a one-time code that they have received in their message box.

Starting steps are the same, such as creating a Firebase project, creating an Android Studio project, adding firebase to our Android app, adding firebase-auth and firebase-core dependencies, adding SHA-1 and SHA-256 keys, add JSON file, and apply plugins. for reference first read Firebase: Google Sign-In Authentication or Firebase: Facebook Sign-In Authentication.

The next steps are to enable phone number authentication in Firebase console. After these preliminary steps, we have to perform the following steps:

Step1:

Now, we will add permission to use the Internet in our Manifest file.

Step2:

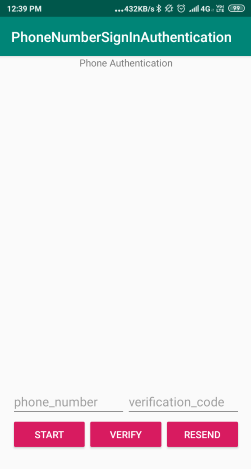

Now, we will modify our 'activity_main.xml' file for phone number authentication. The layout design will be as followed:

Step3:

Now, add code for the phone number authentication. and modify your 'MainActivity.java' file. Below is the code for the phone number authentication.



  1. //Implementing onClickListener
  2. public class MainActivity extends AppCompatActivity implements View.OnClickListener {
  3.
  4.     private static final String TAG = "PhoneAuthActivity";
  5.
  6.     //Adding a member variable for the key verification in progress
  7.     private static final String KEY_VERIFY_IN_PROGRESS = "key_verify_in_progress";
  8.
  9.     //Creating FirebaseAuth member variable
  10.     private FirebaseAuth mAuth;
  11.
  12.     //Adding a bunch of member variables for view groups, edit text, and buttons.
  13.     private ViewGroup mPhoneNumberViews;
  14.     private ViewGroup mSignedInViews;
  15.
  16.     private EditText mPhoneNumberField;
  17.     private EditText mVerificationField;
  18.
  19.     private Button mStartButton;
  20.     private Button mVerifyButton;
  21.     private Button mResendButton;
  22.     private Button mSignOutButton;
  23.
  24.     //Setting Boolean to say whether or not we are in progress.
  25.     private boolean mVerificationInProgress = false;
  26.
  27.     //Adding verification id as a member variable.
  28.     private String mVerificationId;
  29.
  30.     //Adding a member variable for PhoneAuthProvider.ForceResendingToken callback.
  31.     private PhoneAuthProvider.ForceResendingToken mResendToken;
  32.
  33.     //Adding a member variable for a callback which is our PhoneAuthProvider.OnVerificationStateChangeCallbacks.
  34.     private PhoneAuthProvider.OnVerificationStateChangedCallbacks mCallbacks;
  35.
  36.     @Override
  37.     protected void onCreate(Bundle savedInstanceState) {
  38.         super.onCreate(savedInstanceState);
  39.
  40.         setContentView(R.layout.activity_main);
  41.
  42.         // Restoring the instance state
  43.         if (savedInstanceState != null) {
  44.             onRestoreInstanceState(savedInstanceState);
  45.         }
  46.
  47.         // Assigning all the views
  48.         mPhoneNumberViews = findViewById(R.id.phoneAuthFields);
  49.         mSignedInViews = findViewById(R.id.signedInButtons);
  50.
  51.         mPhoneNumberField = findViewById(R.id.fieldPhoneNumber);
  52.         mVerificationField = findViewById(R.id.fieldVerificationCode);
  53.
  54.         mStartButton = findViewById(R.id.buttonStartVerification);
  55.         mVerifyButton = findViewById(R.id.buttonVerifyPhone);
  56.         mResendButton = findViewById(R.id.buttonResend);
  57.         mSignOutButton = findViewById(R.id.signOutButton);
  58.
  59.         // Setting all the click listeners
  60.         mStartButton.setOnClickListener(this);
  61.         mVerifyButton.setOnClickListener(this);
  62.         mResendButton.setOnClickListener(this);
  63.         mSignOutButton.setOnClickListener(this);
  64.
  65.
  66.         // Initialize Firebase Auth
  67.         mAuth = FirebaseAuth.getInstance();
  68.
  69.         // Initializing phone auth callbacks  (For verification, Not entering code yet, To get text send to device)
  70.         mCallbacks = new PhoneAuthProvider.OnVerificationStateChangedCallbacks() {
  71.
  72.             @Override
  73.             public void onVerificationCompleted(PhoneAuthCredential credential) {
  74.                 // It will be invoked in two situations, i.e., instant verification and auto-retrieval:
  75.                // 1 - In few of the cases, the phone number can be instantly verified without needing to  enter or send a verification code.
  76.               // 2 - On some devices, Google Play services can automatically detect the incoming verification SMS and perform verification without
  77.               //     user action.
  78.                 Log.d(TAG, "onVerificationCompleted:" + credential);
  79.                 mVerificationInProgress = false;
  80.
  81.                 //Calling signInWithPhoneAuthCredential.
  82.                 signInWithPhoneAuthCredential(credential);
  83.             }
  84.
  85.             //Creating onVerificationFailed() method.
  86.             @Override
  87.             public void onVerificationFailed(FirebaseException e) {
  88.                 // It is invoked when an invalid request is made for verification.
  89.                 //For instance, if the phone number format is not valid.
  90.                 Log.w(TAG, "onVerificationFailed", e);
  91.                 mVerificationInProgress = false;
  92.
  93.                 if (e instanceof FirebaseAuthInvalidCredentialsException) {
  94.                     // Invalid request
  95.                     // Setting error to text field
  96.                     mPhoneNumberField.setError("Invalid phone number.");
  97.                 } else if (e instanceof FirebaseTooManyRequestsException) {
  98.                     // The SMS quota has been exceeded for the project
  99.                    Toast.makeText(getApplicationContext(), "Quota exceeded", Toast.LENGTH_SHORT).show();
  100.                 }
  101.             }
  102.              // Creating onCodeSent() method called after the verification code has been sent by SMS to the provided phone number.
  103.             @Override
  104.             public void onCodeSent(String verificationId,
  105.                                    PhoneAuthProvider.ForceResendingToken token) {
  106.                  // The SMS verification code will be sent to the provided phone number
  107.                 // Now need to ask the user for entering the code and then construct a credential
  108.                 // through integrating the code with a verification ID.
  109.                 Log.d(TAG, "onCodeSent:" + verificationId);
  110.
  111.                 // Save the verification ID and resend token to use them later
  112.                 mVerificationId = verificationId;
  113.                 mResendToken = token;
  114.             }
  115.         };
  116.     }
  117.     // Creating onStart method.
  118.     @Override
  119.     public void onStart() {
  120.         super.onStart();
  121.
  122.         // Checking if the user is signed in or not. If signed in, then update UI accordingly.
  123.         FirebaseUser currentUser = mAuth.getCurrentUser();
  124.
  125.         if (currentUser != null) {
  126.             Log.d(TAG, "Currently Signed in: " + currentUser.getEmail());
  127.             Toast.makeText(MainActivity.this, "Currently Logged in: " + currentUser.getEmail(), Toast.LENGTH_LONG).show();
  128.             mPhoneNumberViews.setVisibility(View.GONE);
  129.             mSignedInViews.setVisibility(View.VISIBLE);
  130.         }
  131.         else {
  132.             mPhoneNumberViews.setVisibility(View.VISIBLE);
  133.             mSignedInViews.setVisibility(View.GONE);
  134.         }
  135.
  136.         //check if a verification is in progress. If it is then we have to re verify.
  137.         if (mVerificationInProgress && validatePhoneNumber()) {
  138.             startPhoneNumberVerification(mPhoneNumberField.getText().toString());
  139.         }
  140.     }
  141.     //Implementing SaveInstanceState to save the flag.
  142.     @Override
  143.     protected void onSaveInstanceState(Bundle outState) {
  144.         super.onSaveInstanceState(outState);
  145.         outState.putBoolean(KEY_VERIFY_IN_PROGRESS, mVerificationInProgress);
  146.     }
  147.
  148.     //Implementing RestoreInstanceState to restore the flag.
  149.     @Override
  150.     protected void onRestoreInstanceState(Bundle savedInstanceState) {
  151.         super.onRestoreInstanceState(savedInstanceState);
  152.         mVerificationInProgress = savedInstanceState.getBoolean(KEY_VERIFY_IN_PROGRESS);
  153.     }
  154.
  155.     // Creating startPhoneNumberVerification() method
  156.    //Getting text code sent. So we can use it to sign-in.
  157.    private void startPhoneNumberVerification(String phoneNumber) {
  158.         PhoneAuthProvider.getInstance().verifyPhoneNumber(
  159.                 phoneNumber,        // Phone number to verify
  160.                 60,                 // Timeout duration
  161.                 TimeUnit.SECONDS,   // Unit of timeout
  162.                 this,               // Activity (for callback binding)
  163.                 mCallbacks);        // OnVerificationStateChangedCallbacks
  164.
  165.         //Setting flag to say that the verification is in process.
  166.         mVerificationInProgress = true;
  167.     }
  168.
  169.      //Creating a helper method for verification of phone number with code.
  170.     // Entering code and manually signing in with that code
  171.     private void verifyPhoneNumberWithCode(String verificationId, String code) {
  172.         PhoneAuthCredential credential = PhoneAuthProvider.getCredential(verificationId, code);
  173.         signInWithPhoneAuthCredential(credential);
  174.     }
  175.
  176.     // Creating helper method signInWithPhoneAuthCredential().
  177.     //Use text to sign-in.
  178.     private void signInWithPhoneAuthCredential(PhoneAuthCredential credential) {
  179.
  180.          //Adding onCompleteListener to signInWithCredential.
  181.          mAuth.signInWithCredential(credential)
  182.                 .addOnCompleteListener(this, new OnCompleteListener<AuthResult>() {
  183.                     @Override
  184.                     public void onComplete(@NonNull Task<AuthResult> task) {
  185.                         if (task.isSuccessful()) {
  186.                             //Sign-In is successful, update the UI with the signed-in user's information
  187.                             Log.d(TAG, "signInWithCredential:success");
  188.                             FirebaseUser user = task.getResult().getUser();
  189.                             mPhoneNumberViews.setVisibility(View.GONE);
  190.                             mSignedInViews.setVisibility(View.VISIBLE);
  191.                         } else {
  192.                            // If the SignIn fails, it will display a message and also update the UI
  193.                             Log.w(TAG, "signInWithCredential:failure", task.getException());
  194.                             if (task.getException() instanceof FirebaseAuthInvalidCredentialsException) {
  195.                                 // The verification code entered was invalid
  196.                                 mVerificationField.setError("Invalid code.");
  197.                             }
  198.                         }
  199.                     }
  200.                 });
  201.     }
  202.     // Creating helper method for validating phone number.
  203.     private boolean validatePhoneNumber() {
  204.         String phoneNumber = mPhoneNumberField.getText().toString();
  205.         if (TextUtils.isEmpty(phoneNumber)) {
  206.             mPhoneNumberField.setError("Invalid phone number.");
  207.             return false;
  208.         }
  209.
  210.         return true;
  211.     }
  212.
  213.     //Creating helper method for resending verification code.
  214.     private void resendVerificationCode(String phoneNumber,
  215.                                         PhoneAuthProvider.ForceResendingToken token) {
  216.         PhoneAuthProvider.getInstance().verifyPhoneNumber(
  217.                 phoneNumber,        // Phone number to verify
  218.                 60,                 // Timeout duration
  219.                 TimeUnit.SECONDS,   // Unit of timeout
  220.                 this,               // Activity (for callback binding)
  221.                 mCallbacks,         // OnVerificationStateChangedCallbacks
  222.                 token);             // ForceResendingToken from callbacks
  223.     }
  224.     //Adding onClick method which handles the button clicks.
  225.     @Override
  226.     public void onClick(View view) {
  227.         switch (view.getId()) {
  228.             case R.id.buttonStartVerification:
  229.                 if (!validatePhoneNumber()) {
  230.                     return;
  231.                 }
  232.                 //Calling startPhoneNumberVerification helper method for verifying phone number.
  233.                 startPhoneNumberVerification(mPhoneNumberField.getText().toString());
  234.                 break;
  235.             case R.id.buttonVerifyPhone:
  236.                 String code = mVerificationField.getText().toString();
  237.                 if (TextUtils.isEmpty(code)) {
  238.                     mVerificationField.setError("Cannot be empty.");
  239.                     return;
  240.                 }
  241.                 //Call the verifyPhoneNumberWithCode () method.
  242.                 verifyPhoneNumberWithCode(mVerificationId, code);
  243.                 break;
  244.             case R.id.buttonResend:
  245.                 //Call the resendVerificationCode () method.
  246.                 resendVerificationCode(mPhoneNumberField.getText().toString(), mResendToken);
  247.                 break;
  248.             case R.id.signOutButton:
  249.                 //Call the signOut() method.
  250.                 signOut();
  251.                 break;
  252.         }
  253.     }
  254.     //Create the signOut() method.
  255.     private void signOut() {
  256.         mAuth.signOut();
  257.         mPhoneNumberViews.setVisibility(View.VISIBLE);
  258.         mSignedInViews.setVisibility(View.GONE);
  259.     }
  260. }



#askProgrammers
Learn Programming for Free


Join Programmers Community on Telegram


Talk with Experienced Programmers


Just drop a message, we will solve your queries
